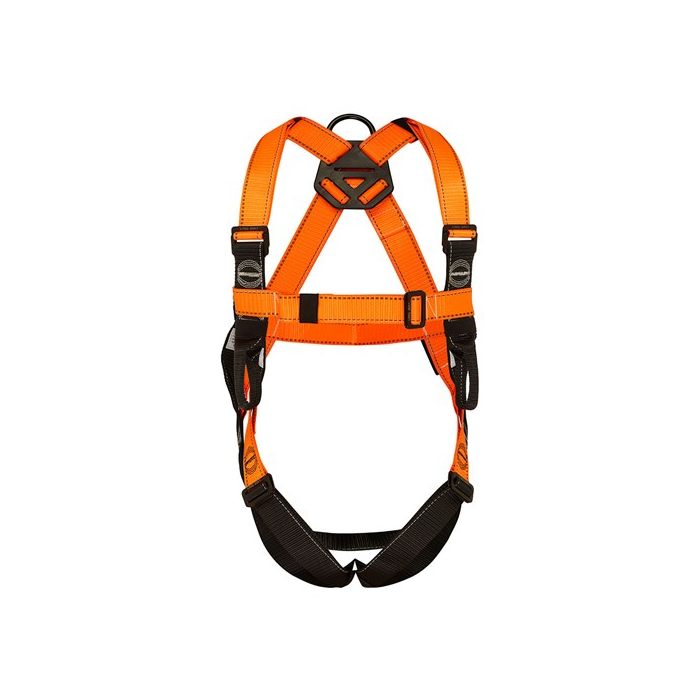

PEH1 Essential Harness - Standard

PEH1 Essential Harness - Standard

Features

• Pebble Weave Webbing design provides maximum grip forbuckles, eliminating webbing slippage and the need forcontinual re-adjustment.
• High Tenacity UV stabilised webbing, enhances resistance tosolvents and UV light degradation.
• Retro-Reflective Thread in webbing for improved visibility inlow light.
• Large Dorsal D Ring for easier connection.
• Closed Loop Webbing system on rear Dorsal Dmaintains positioning of Dorsal D in the event of a fall.
• Significantly reducing the risk of injury from hardware hittingthe back of workers head.
• Extended Belay Loops make connection of hardware easier,also maintains absolute front and centre positioning as perAS/NZS requirements.
• Sub Pelvic Strap integration along the line of Belay Loops,places the worker away from hardware in the event of a fall,significantly reducing the risk of injury from hardware hittingthe worker.
• Articulated Chest Strap and shoulder adjustment points,designed for additional user comfort and female users, dueto lower positioning of strap.
• Service Pouch on back.

Product Information

• AUS/NZ designed and engineered
• Size ranges available- Small, Standard ( M-L ) and Maxi ( XL-2XL ).
• 10 year life span from date of manufacture


Technical Information

• Webbing Material: Polyester; 45mm; UV Resilient
• Buckle Material: Corrosion resistant electrophoresis; high tensile lightweight alloy steel
• Fall Arrest Hardware: Drop Forged corrosion resistant electrophoresis; high strength alloy steel
• Thread: Polyester; 9.81 Newtons (10kg); Extension at break 19.5%
• Stitch Pattern: THETA Pattern combines 313 stitches to exceed 28kN of strength; AS/NZ compliant colour contrast.
• Plastic Material: UV stabilised high density polyethylene.
• Weight: 1.1kg
• Web Tenacity: Range: Min 28kN - Max 30kN.
• Drop Forged D Rings: Alloy Steel (standard): 40kN
• Buckle Strength: 12 to 17kN model dependent; Laser etched or hard marked on buckle.
